SPECIFIC HIGH VOLTAGE POWER SUPPLIES (BTX SERIES)
This category of high voltage AC-DC or DC-DC is configurable according to customer features.
The high voltage power supplies are available under various forms: benchtops, racks 19’’ 1U to 3U.
Benchtops of this category offer big flexibility for the output voltage and polarity. They work either in local mode or remote one. Serial and USB port or network interface for easy connection to various fieldbus.
Standards features take into account a screen for the output voltage, an input connector, a positive polarity, negative or bipolar, lines controls and precise charges, low ripple, high stability, permanent protection against overload, short circuit and arc.
Possibility of a setup in floating mode.

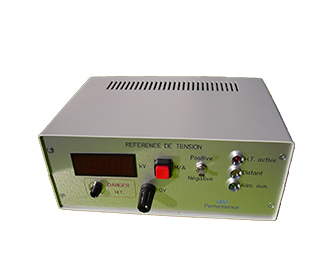

This model of the BTX series is a 2500V bipolare reference, with +/-0.1% accuracy and TC 20ppm/°C. It is an assembly of two MTA converters (positive and negative) and a highly stabilized loop which compensates for the self-heating of the converters. The loop is controled by a very low TC reference ( 8ppm/°C)
KEY FEATURES:
- Mono or multi channels
- Power from 100mW to 1000W
- Programmable
- High voltage and power monitoring
APPLICATIONS:
- Research
- Tests stands
- Tomography
- Imaging
- Medical
- Military
- Atmospherical research
- Laboratory research
