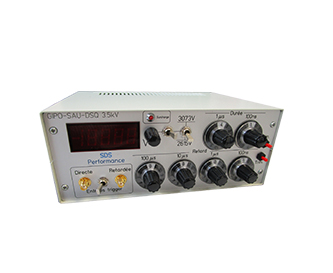

DRIVERS FOR PIEZOELECTRICS (DSQ-SAU)

SDS High voltage pulse generators are based upon the use of field-effect transistor technology.

This power supply provides the remarkable feature of being introducible into lightweight and reduced-size obstruction cases.

The DSQ-SAU is dedicated to drive piezoelectric transducers, pockels cell or any other application equivalent to a capacitve load. This high voltage square signal generator is designed for piezoelectric elements driving.



CARACTÉRISTIQUES :

  • Output voltage: from 300V to 3kV
  • Load: until 5pF
  • Rise time: 50ns
  • Fall time: 100ns
  • On state duration: adjustable from 300ns to 5µs
  • Frequency: 20kHz maximuM

APPLICATIONS :

  • Piezoelectric elements activation
