AC/DC BENCH-TOP HIGH VOLTAGE POWER SUPPLIES (HV-LAB SERIES)
Product not currently available

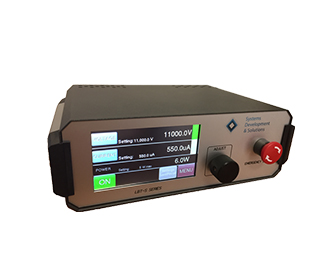

HV LAB Series is a compact AC-DC bench-top high voltage power supply with adjustable output voltage.
The HV-LAB power supply series is equipped with 4.3” resistive touch LCD screen on the front panel. Associate with a rota- ting knob for instantaneous and precise adjustment of settings.
For remote operation, the device offers a USB-B and a SUBD9 connectors on the rear panel for voltage / current control and monitoring via USB serial (COM) and RS232 protocols.
Others communications buses can be implement on rear panel SUBD9 connector upon request (ex: CAN interface, RS485…).
KEY FEATURES:
- Bench top configurations
- Wide range of outputs
- Overload, short circuits and arc protections
- Single positive or negative output
- Current and / or voltage monitoring
- Power: 0.1W to 6W
APPLICATIONS:
- General high voltage
- Bias supplies
- Detectors (PMTs-APDs)
- Lasers
- Electrophoresis
- Electrostatic chucks
